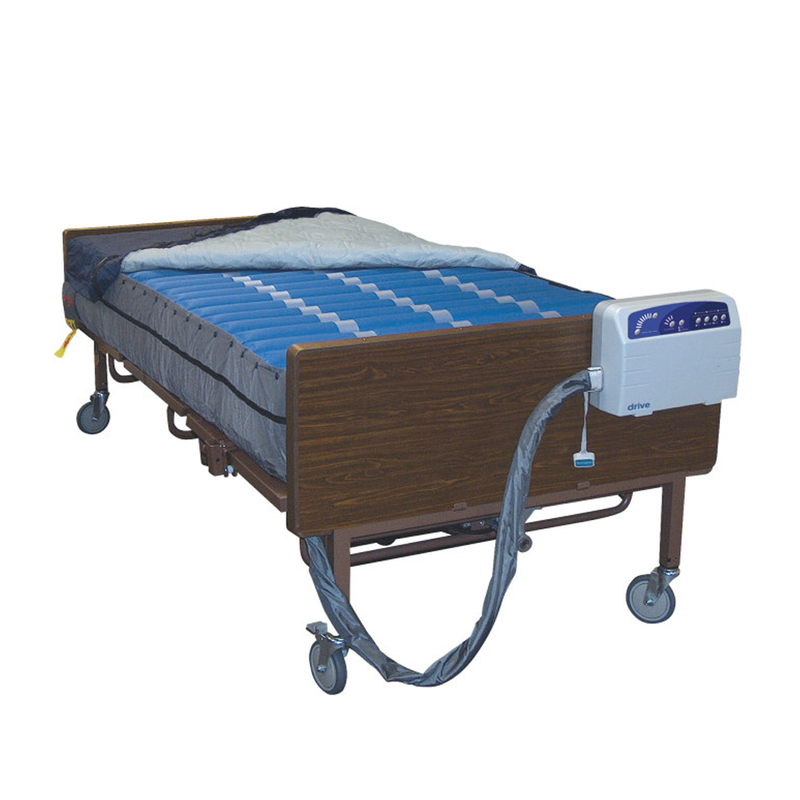

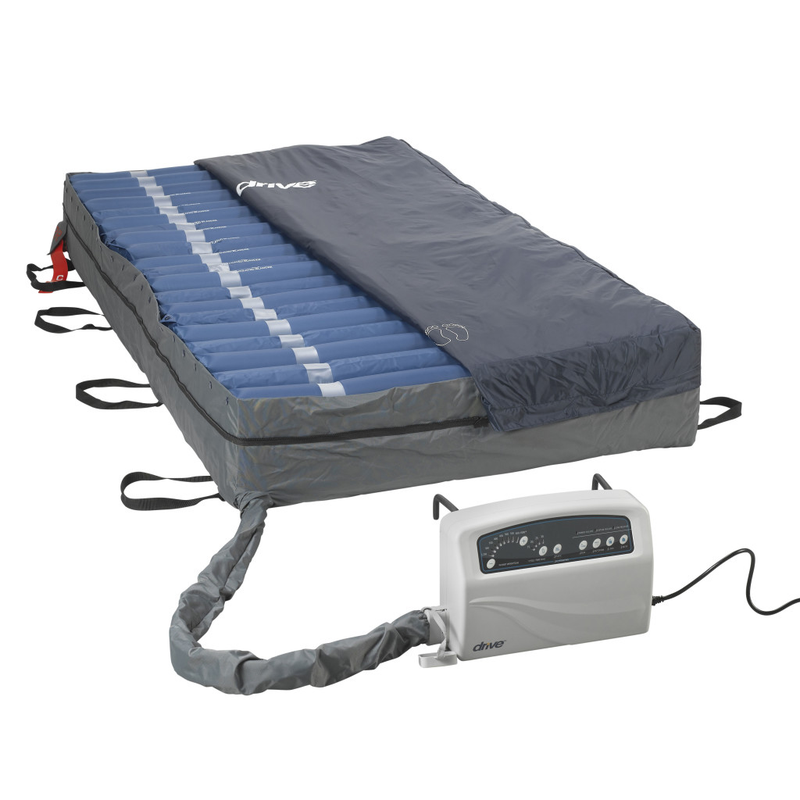

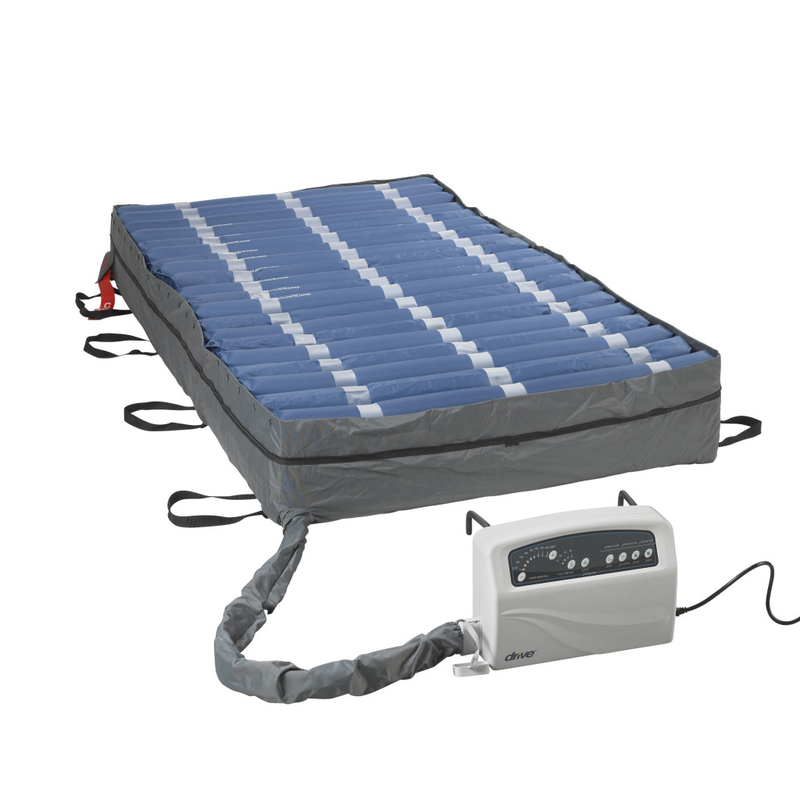

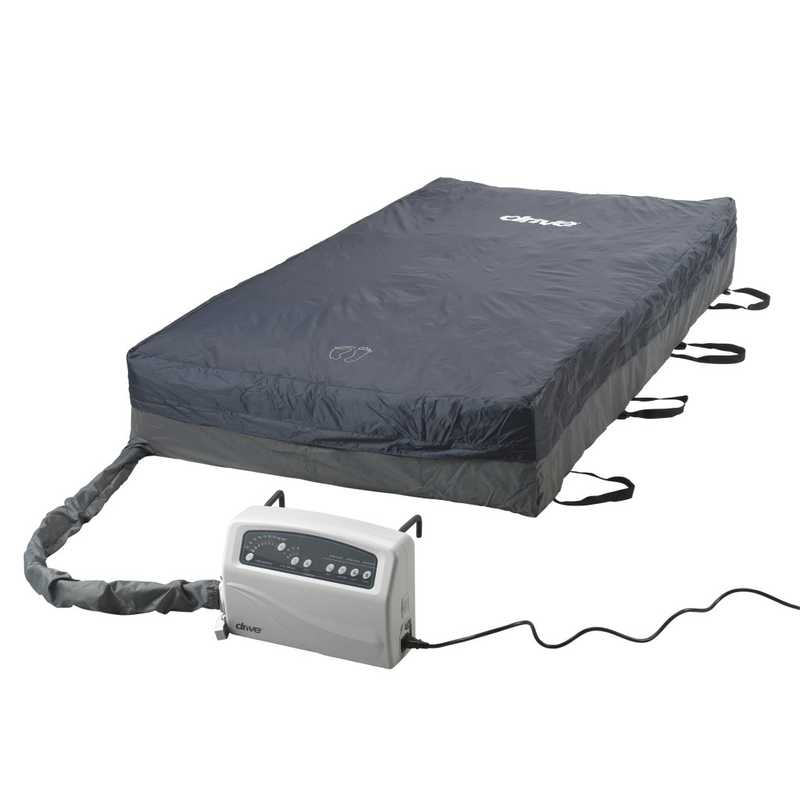

Drive Medical Med-Aire Plus Bariatric Low Air Loss Mattress System – 42", 48", or 54" Width Options

Drive Medical Med-Aire Plus Bariatric Low Air Loss Mattress System – 42", 48", or 54" Width Options

by Drive Medical
SKU 14030
$65.99 - $3,199.23
$1,929.99
$65.99 - $3,199.23
$1,929.99

aThe Drive Medical Med-Aire Plus Bariatric Alternating Pressure Mattress System (Model 14030) is specially engineered to meet the needs of bariatric patients requiring advanced pressure relief. Available in 42", 48", and 54" widths, this system supports patients up to 600 lbs and helps prevent and manage pressure ulcers (bedsores) with state-of-the-art alternating pressure and low air loss technology.

The system includes a digital control unit and high-efficiency compressor, which inflates 20 individual 10-inch deep air cells to deliver continuous pressure redistribution. A cell-on-cell design maintains support during power outages for up to 24 hours, reducing the risk of bottoming out.

The intuitive digital pump offers four cycle times (10, 15, 20, 25 minutes) and customizable weight settings for individualized comfort. Features like Auto-Firm and Seat Inflate make transfers and repositioning easier for caregivers. Built-in visual and audible alarms immediately notify staff of any drop in pressure, ensuring patient safety.

A quilted, removable nylon cover is included, offering fluid resistance and low shear to protect fragile skin from friction and moisture. The cover is soft, breathable, and easy to clean.

This Med-Aire Plus model is a top-tier choice for hospitals, nursing homes, and home care settings where comfort, skin protection, and durability are key.

✅ Key Features

  • Bariatric Support: Durable construction supports up to 600 lbs

  • Alternating Pressure Relief: Helps prevent and treat pressure sores

  • 20 Deep Air Cells: Maintain comfort and reduce pressure points

  • Power-Outage Protection: Cell-on-cell design supports patient for up to 24 hours without power

  • Multiple Cycle Times: Customizable 10, 15, 20, or 25-minute cycles

  • Auto-Firm & Seat Inflate: For easy patient transfers

  • Built-in Alarms: Visual and audible alerts for low pressure

  • Easy-to-Clean Cover: Removable, fluid-resistant nylon material

  • EZ Lock Tubing: Quick-release connection for hassle-free setup

  • CPR Valve: Enables quick air release in emergencies

  • User-Friendly Operation: Digital interface with intuitive controls

📏 Specifications

  • Brand: Drive Medical

  • Model: Med-Aire Plus Bariatric (14030 Series)

  • Sizes: 42" x 80", 48" x 80", 54" x 80"

  • Mattress Height: 10 inches

  • Air Cells: 20

  • Weight Capacity: 600 lbs

  • Pump Airflow Settings: 10, 15, 20, 25 minutes

  • Control Unit Airflow: 12 LPM

  • Cover Material: Nylon (quilted, waterproof, low shear)

  • Alarms: Visual & audible

  • HCPCS Code: E0277

  • Warranty: 18-month limited

🛠 Installation Instructions

  1. Lay mattress flat on bed frame with air hose connectors at the foot of the bed

  2. Cover with a standard cotton sheet

  3. Hang control unit on bed’s footboard

  4. Connect air tubes to pump (ensure no kinks)

  5. Plug into power source

  6. Press power switch to turn on

▶️ Operating Instructions

  • Turn unit on (green light will illuminate, beep will sound)

  • Defaults to STATIC mode before switching to last-used mode

  • Press "Static/Alternating" to toggle to ALTERNATING PRESSURE

  • Use "+" and "–" to adjust weight setting

  • Manufacturer recommends ALTERNATING PRESSURE mode for best results

🧼 Cleaning Instructions

  • Clean at least weekly using a damp cloth and mild detergent

  • Avoid direct sunlight when air drying

  • Cover is machine washable on cold – air dry only

  • Keep away from dusty environments

🔧 Maintenance Tips

  • Regularly inspect power cord, air tubes, and mattress cover for damage

  • Store flat and upside down; do not fold

  • When storing, roll from foot to head end
